EROWA ERC 80 Chaotic production of different components.

10/25

Number of pallets

10/25

Number of pallets

320x320 mm

Pallet dimensions

320x320 mm

Palettenmaß

80 kg

Transfer weight

80 kg

Transfer weight

Compare

Configure

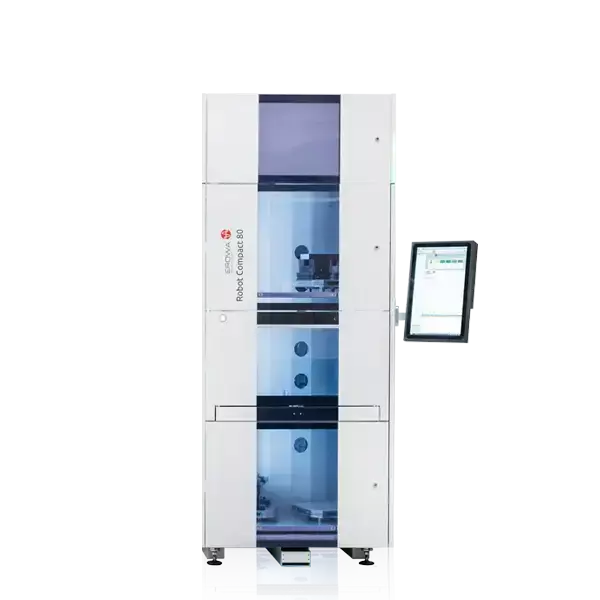

EROWA ERC 80

The EROWA ERC 80 loads the ACURA 50 EL 5-axis machining centre with 320 x 320 mm pallets. The multi-pallet magazine has a capacity of 10 pallets of 320 x 320 mm each (optionally 16 pallets), with a transfer weight of 80 kg. Alternatively, the pallet magazine can also handle smaller pallets, e.g. up to 24 pallets with a diameter of 210 mm. The special feature of this concept is the small space requirements of approx. 4480 mm.

Your advantages with the EROWA ERC 80

Very low space requirements of only approx. 1060 mm in width
Chaotic production of different components
Storage and retrieval station
Priority-controlled feeding of the workpieces

Beratung zur Maschine

EROWA ERC 80 Multipalettenspeicher Automationslösungen für HEDELIUS CNC-Bearbeitungszentren

Get the best out of your production

Greater productivity, higher delivery reliability, relieved employees: there are many good reasons for automation in production.

Less land consumption.

An automated machining centre often replaces several conventional machines. Productivity per area increases.

Increased productivity.

The majority of work steps can be automated. The selection of the right automation depends on the number of pieces, batch size, running time, dimensions and weight of the workpieces to be produced.

Improved quality.

Eine Automation liefert gleichbleibende Qualität, da sie nicht müde oder abgelenkt wird.

Lower operating costs.

Quality made in Germany and a fast, partnership-based service guarantee the high availability of our machines, reduce your downtimes and secure your economic advantage.

Reduced tooling times.

Whether pallet magazines, robot systems, large tool magazines or built-in zero-point clamping systems - HEDELIUS has the expertise to reduce your tooling times.

Maschinenvergleich.

Fügen Sie weitere Maschinen hinzu um Leistungsparameter zu vergleichen.


	EROWA ERC 80	Add machine	Add machine
	Storage/retrieval station
Storage/retrieval station	Yes	-	-
	Rotatable storage/retrieval station
Rotatable storage/retrieval station	No	-	-
	Pallet handling
Pallet handling	Yes	-	-
	Number of pallets
Number of pallets	10/25	-	-
	Pallet dimensions
Pallet dimensions	320x320 mm	-	-
	Collision area diameter
Collision area diameter	-	-	-
	Transfer weight
Transfer weight	80 kg	-	-
	Manipulace s obrobky
Manipulace s obrobky	No	-	-
	Gripper
Gripper	-	-	-
	Workpiece dimensions
Workpiece dimensions	-	-	-
	Workpiece storage
Workpiece storage	Shelving system	-	-
	Multi-machine operation
Multi-machine operation	No	-	-

Gallery of the EROWA ERC 80

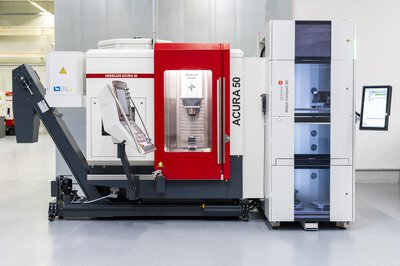

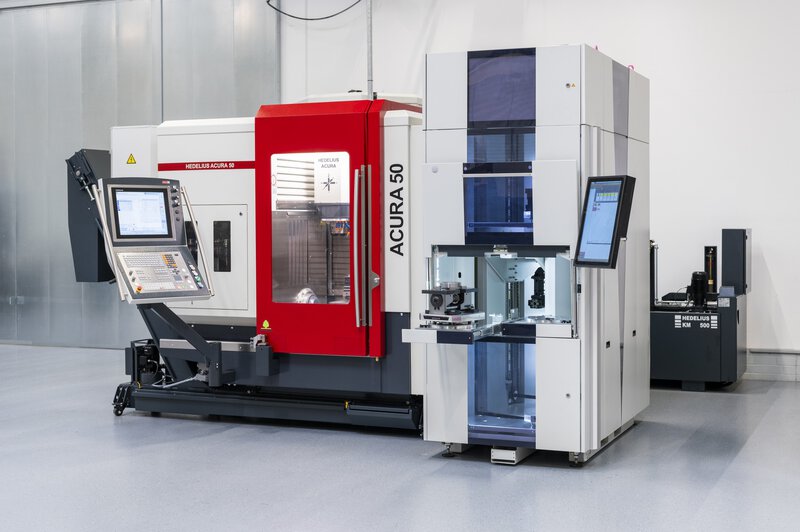

EROWA ERC 80 Multipalettenspeicher an HEDELIUS CNC-Bearbeitungszentren ACURA 50 EL

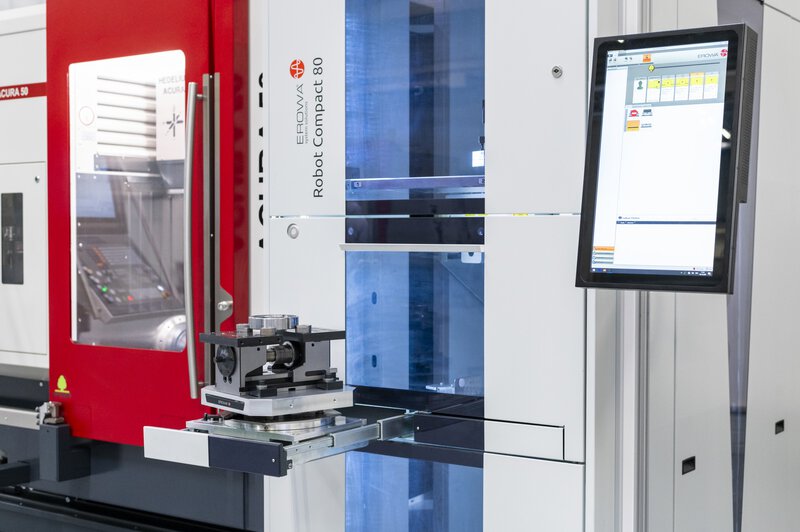

EROWA ERC 80 Multipalettenspeicher mit ausgezogener Rüststation an HEDELIUS CNC-Bearbeitungszentren ACURA 50 EL

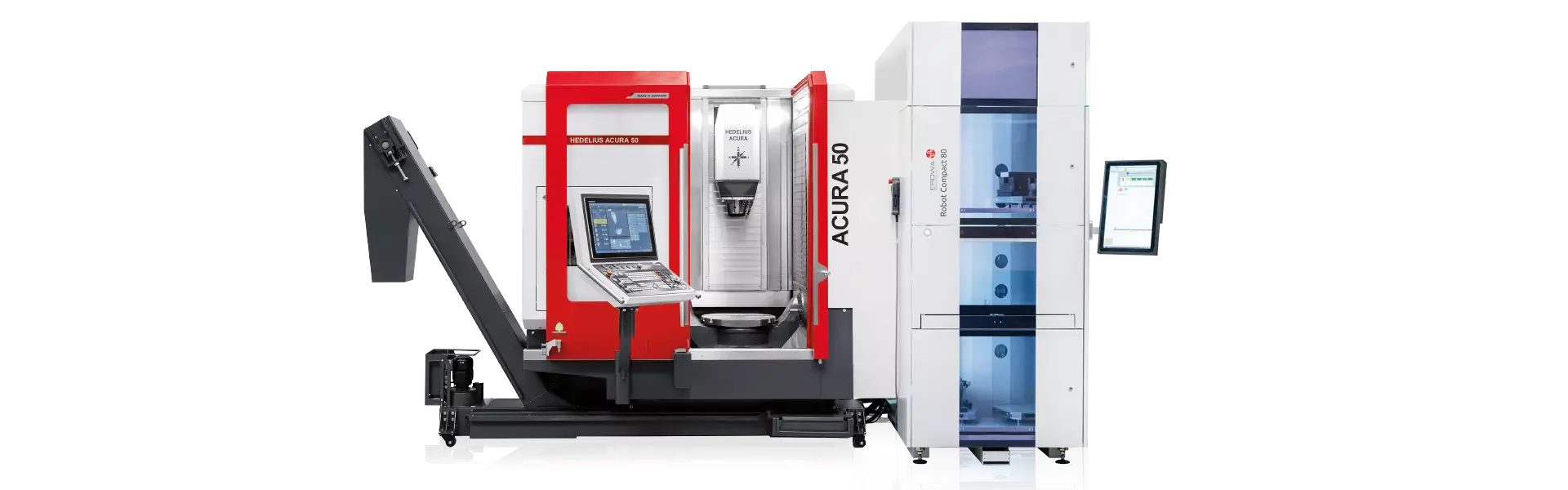

EROWA ERC 80 Multipalettenspeicher Automationslösungen für HEDELIUS CNC-Bearbeitungszentren ACURA 50 EL

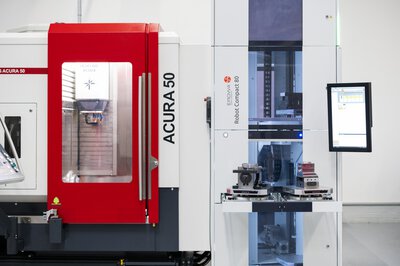

EROWA ERC 80 Multipalettenspeicher Automationslösungen für HEDELIUS CNC-Bearbeitungszentren ACURA 50 EL mit ausgezogener Rüststation

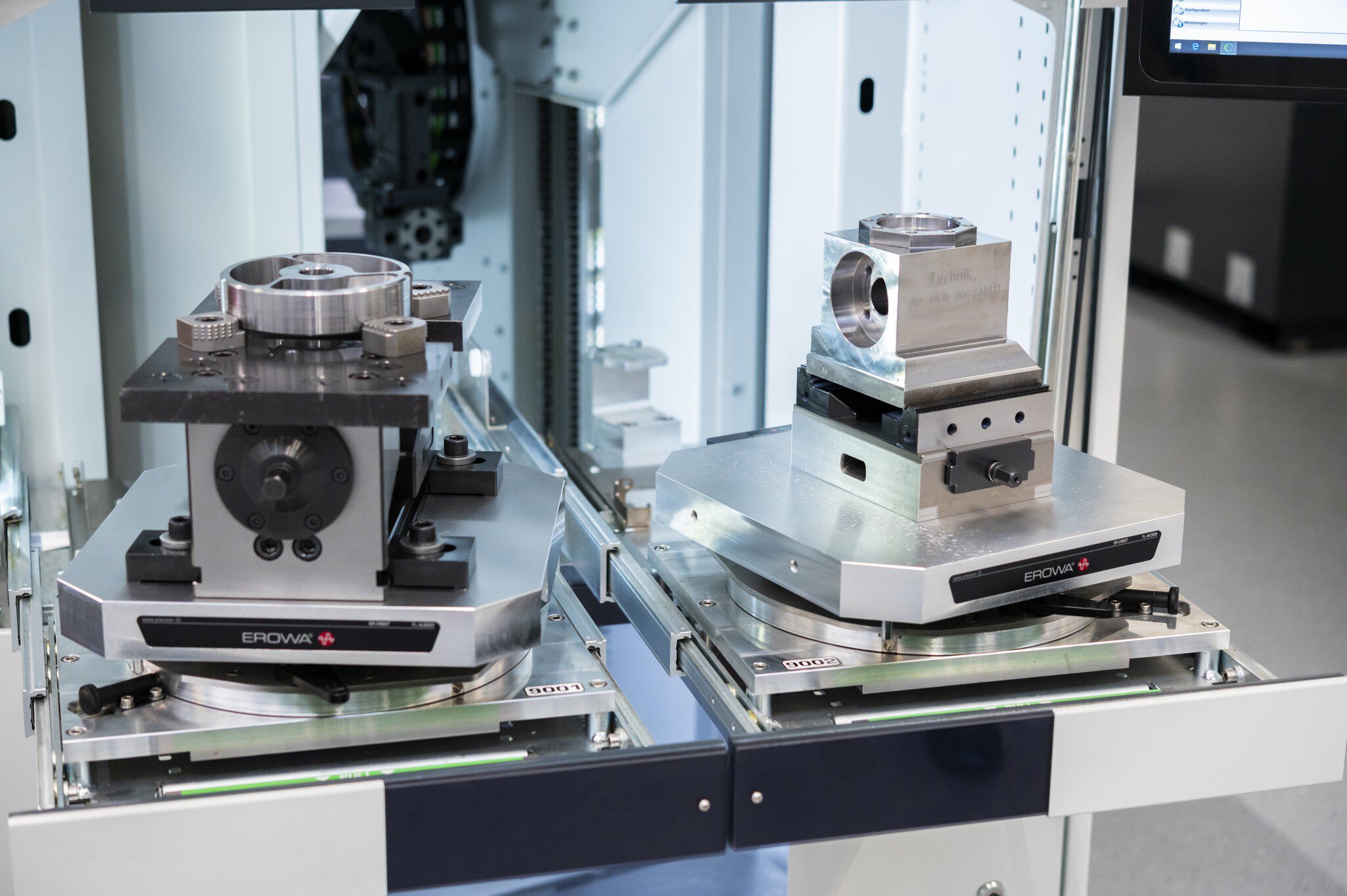

EROWA ERC 80 Multipalettenspeicher Automationslösungen Rüststation

Choose your compatible CNC machining centre.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

ACURA 50 EL

Travel paths (X/Y/Z)

Travel paths

500 x 550 x 550 mm

Dimensions rotating/swivelling table

Rotating table dimensions

Ø 500x430 mm

Load rotating/swivelling table max.

Turntable load

300 kg

ACURA 65 EL

Travel paths (X/Y/Z)

Travel paths

700 x 650 x 600 mm

Dimensions rotating/swivelling table

Rotating table dimensions

Ø 650x540 mm

Load rotating/swivelling table max.

Turntable load

500 kg

Additional equipment.

Expand your automation system.

Additional equipment.

Expand your automation system.

Pallets

Workpiece pallet 400x400x38 mm for ACURA 65 MARATHON

Dimensions: 400x400x38mm

Disturbance circle: Ø 600 mm

Clamping height: 417 mm

Clamping weight: 352 kg

Transfer weight: 370 kg

Workpiece pallet 320x320x38mm

STANDBY magazine

HEDELIUS STANDBY Magazin für bis zu 70 / 115 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY Magazin 70 Capacity: 70

STANDBY Magazin 115 Capacity: 115

HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 180 Capacity: 180

HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 264 Capacity: 264

Chip press

Die Spänepresse schließt direkt am Späneförderer des HEDELIUS Bearbeitungszentrums an. Die bei der Bearbeitung anfallenden Späne werden gepresst und aus dem Reststoff wird so ein Wertstoff. So werden Platz und zusätzlich Entsorgungskosten gespart.

chip press

The chip press separates the chips from the cooling lubricants and compresses them into clean, manageable briquettes. For example, 300 litres of chips can be compressed into a few dozen briquettes. This corresponds to a volume reduction of approx. 80 %.

This is your new automation solution made in Germany.

EROWA ERC 80

Number of pallets

10/25

Pallet dimensions

Palettenmaß

320x320 mm

Transfer weight

80 kg

Set-up options

Workpiece pallet 400x400x38 mm for ACURA 65 MARATHON

Workpiece pallet 320x320x38mm

STANDBY Magazin 70

STANDBY Magazin 115

STANDBY magazine 180

STANDBY magazine 264

chip press

You are interested in a new automation system with a HEDELIUS machining centre. We will be happy to make you an offer, e.g. for a CNC machining centre, an automation solution, etc. from HEDELIUS Maschinenfabrik GmbH. We would be happy to demonstrate the output of our CNC machining centres in a practical demonstration or via video livestream.
