Machining centre with rotating/swivelling table: ACURA 50 EL

The machine is loaded through an approx. 600 x 840 mm opening in the right-hand side of the machine. This pneumatically activated stainless steel door of the 5-axis machining centre enables automatic loading of pallets without restricting access to the Machine work area.

Your advantages with the ACURA 50 EL

Automation with pallet handling system or robot
Loading from the right-hand side of the machine through pneumatically activated stainless steel loading door
Prepared automation interface
Side loading opening with opening height of approx. 840 mm
Suitable for numerous pallet handling systems or robot systems
4-fold rotary transfer for pneumatic system in the machine table for
Actuating zero point clamping elements or force clamps

Arrange a consultation

HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 50 EL

Comparison of the machines.

This is where the machine comparison is created: Add further machines to compare performance parameters.


	ACURA 50 EL	Add machine	Add machine
	Travel paths (X/Y/Z)
Travel paths (X/Y/Z)	500 x 550 x 550 mm	-	-
	Swivelling area
Swivelling area	+30° – -115°	-	-
	Output
Output	22 / 29 / 35 / 30 kW	-	-
	Speed range
Speed range	14000 / 18000 / 22000 min^-1	-	-
	Tool fitting
Tool fitting	SK 40, BT 40, HSK A63	-	-
	Capacity
Capacity	55 / 80 / 125 / 170 / 235 / 319	-	-
	Dimensions rotating/swivelling table
Dimensions rotating/swivelling table	Ø 500x430 mm	-	-
	Load rotating/swivelling table max.
Load rotating/swivelling table max.	300 kg	-	-
	Collision area diameter
Collision area diameter	Ø 550 mm	-	-

Gallery.

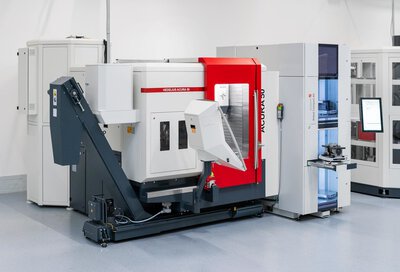

Automation des Bearbeitungszentrums ACURA 50 EL mit Stadtmagazin und Palettenspeicher für mehr Effizienz.

Automation des CNC-Bearbeitungszentrums ACURA 50 EL mit Standby Magazin von hinten und EROWA Palettenautomation links angeschlossen.

Automationslösung von EROWA am 5-Achs-Bearbeitungszentrum ACURA 50 EL zur Palettenautomation.

Palettenspeicher EROWA erc-80 mit zwei besetzten Paletten mit verschiedenen Werkstücken zur automatisierten Bearbeitung. Rüstzeiten minimieren.

The basis of precision.

Many factors play a role in achieving a certain workpiece accuracy. On the one hand, there are the machines themselves. The type, components and software all have an influence on the machining result. However, there are also many accompanying factors to consider, from the location of the machine to measuring equipment, clamping devices and tools through to the qualifications of the employees.

Accuracy of HEDELIUS machining centres

Universalbearbeitungszentrum HEDELIUS TILTENTA 7 mit konstant auskragender Y-Achse und resultierender Steifigkeit für hohe Präzision.

Sophisticated type.

Designed as universal machining centres for a wide range of applications in machine and tool construction, HEDELIUS places great weight on stability and accuracy during the design phase. The result of this process was the special HEDELIUS type with the constantly cantilevered Y-axis and the resulting high rigidity and precision over the entire travel range of the Y-axis and Z-axis.

Die kritischen Baugruppen wie Fahrständer, Betten und Dreh-Schwenktischeinheiten werden bei HEDELIUS inhouse gefertigt und vermessen. Dadurch haben wir nicht nur stets die Qualität im Blick, sondern erkennen im tagtäglichen Einsatz Möglichkeiten und Grenzen der modernen Zerspanung.

In-house production.

Critical assemblies such as travelling columns, beds and rotating/swivelling table units are manufactured and measured in-house at HEDELIUS. As a result, we not only always keep an eye on quality, but also recognise the possibilities and limits of modern chipping in day-to-day use. This process knowledge flows permanently into improving our products and advising our customers.

Kontrolle der Geradheit der Linearachsen mittels Laserinterferometer.

Guides and straightness.

HEDELIUS uses pre-aligned roller guides from German and Swiss manufacturers. At the end of assembly, the positioning precision, repeat precision, straightness and backlash of the linear axes are finally checked and documented using a laser interferometer. The positioning accuracy of the linear axes in accordance with ISO 230-2 is regularly less than 6 µm.

3D Messtaster auf der HEDELIUS ACURA. Prüfung der Genauigkeit mit Reinshaw-Kreisformtest.

IT6 circular accuracy.

The Renishaw circularity test has established itself as a test method for the accuracy of machining centres. The measurement provides information on the interaction between two linear axes and the accuracy of a circular movement. The slip-stick-free roller guides in combination with direct path measuring systems and high angular accuracy enable the milling of fits in a quality of IT6, which reduces production times and the number of spindle tools required.

Laserbasiertes Messinstrument zur Sicherstellung von Winkligkeit und Parallelität. CNC Bearbeitungszentrum mit Winkelmessgeber in den Drehachsen.

Measuring systems on round axes.

The accuracy of the measuring systems has a significant influence on the angularity and parallelism of surfaces and bores. HEDELIUS uses direct angle encoders in the centre of each rotational axis in the integrated rotary tables, the swivel spindle drives and the rotating/swivelling table units. As an option, laser-based angle measurement devices measure the positioning accuracy of rotational axes with a resolution of ±1" and calibrate the axes for maximum positioning accuracy.

Verwendung direkter Längenmessgeräte zur Positionserfassung der Achsen.

Long-term precision.

HEDELIUS only uses direct linear measurement devices for position detection of the X-axis, Y-axis and Z-axis. This means that the position control loop encompasses the entire feed mechanism. This is referred to as "closed loop" operation. Transmission errors in the mechanics can thus be detected by the linear measurement device on the feed axis and corrected by the control electronics.

Spindelkühler an einem HEDELIUS Bearbeitungszentrum zur erhöhung der thermischen Stabilität bei der Bearbeitung.

Temperature compensation.

HEDELIUS equips its machining centres with spindle coolers to dissipate the heat generated in the milling spindle. The cooling system already achieves increased thermal stability as standard. However, as not all of the heat can be dissipated by the spindle cooling, HEDELIUS optionally installs temperature sensors on the spindle, travelling column and, in some cases, on the rotary axes in order to compensate for structural displacements via the control system.

Choose your CNC control system.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

Fit for your desired control system with seminars from the CNC Academy.

Heidenhain TNC 7

The new HEIDENHAIN TNC 7 control system focuses on intuitive, task-orientated and individual control. A customised user interface provides the user with optimum support in every situation. Familiar HEIDENHAIN programming functions are supplemented by smart functions. The control elements of the TNC keyboard are retained, providing a solid basis for the control of HEDELIUS machining centres.

Sinumerik ONE

The SIEMENS SINUMERIK ONE control system brings your ideas to life. SINUMERIK ONE is the future-oriented CNC system for highly productive HEDELIUS machining centres. For unimagined new possibilities, ideas and business models. For faster innovations thanks to the seamless interaction between the virtual and real worlds. And: SINUMERIK ONE is far more than just a powerful hardware innovation.

Leistungs- und drehmomentstarke CELOX-Integral Motorspindeln mit Hybrid-Lagertechnik sichern den technologischen Vorsprung der HEDELIUS Bearbeitungszentren. Das hydromechanische Werkzeugspannsystem garantiert in Verbindung mit der HSK-Schnittstelle höchste Systemsteifigkeit und Rundlaufgüte.

Liquid-cooled motor spindles with precision cooler.

High-output and high-torque CELOX integral motor spindles with hybrid bearing technology ensure the technological lead of HEDELIUS machining centres. In conjunction with the HSK interface, the hydromechanical tool clamping system guarantees maximum system rigidity and concentricity.

Find out all about integral motor spindles.

SK 40 / BT 40 , CELOX 14000 1/min, 117 Nm, 22 kW

SK 40 / BT 40 , CELOX 14000 1/min, 183 Nm, 29 kW

SK 40 / BT 40 / HSK A63 , CELOX 18000 1/min, 136 Nm, 35 kW

HSK A63 , CELOX 22000 1/min, 70 Nm, 30 kW

Automate your machining centre.

More productivity, higher delivery reliability, less stress on employees: there are many good reasons for automating production. HEDELIUS machining centres can be optimally automated. The automation is often attached to the side of the machine. Loading from the side means that the work area remains fully available for set-up and control work, but also, for example, for single part production during the day shift. Even crane loading of the machine is possible without restrictions. Another advantage (depending on the selected automation) is the visibility of the work area and thus optimised process control during set-up on the automation. At the same time, this solution requires little depth and can be easily integrated into an existing production line.

Advantages of automation.

Pallet automation

MARATHON RZ430

Number of pallets

Pallet dimensions

400x400x38 mm

Transfer weight

88 /110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

MARATHON PL406

Number of pallets

Pallet dimensions

400x400x38 / 400x500x48 mm

Transfer weight

270 /370 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Platinum

Number of pallets

Pallet dimensions

400x400x38 mm

Transfer weight

25 /88 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Iridium Hybrid

Number of pallets

Pallet dimensions

200x200x38 mm

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Automation: Werkstückautomation Titanium

BMO Titanium

Number of pallets

Pallet dimensions

400x400x38 mm

Transfer weight

180 /225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Infinity

Number of pallets

individual

Pallet dimensions

600x600x48 / 400x400x38 mm

Transfer weight

180 /225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK Light 30

Number of pallets

Pallet dimensions

Transfer weight

30 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK Light 60

Number of pallets

Pallet dimensions

Transfer weight

60 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK Light 120

Number of pallets

Pallet dimensions

Transfer weight

120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Palettenautomation INDUNORM Indumatik Light 150

INDUMATIK 150

Number of pallets

individual

Pallet dimensions

Transfer weight

150 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA ERC 80

Number of pallets

Pallet dimensions

400x400x38 / 320x320x38 mm

Transfer weight

80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA Leonardo

Number of pallets

Pallet dimensions

Transfer weight

80 /120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA ERD 150 / 500

Number of pallets

individual

Pallet dimensions

400x400x38 mm

Transfer weight

150 /500 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Tower

Number of pallets

individual

Pallet dimensions

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Promro Hybrid RD

Number of pallets

Pallet dimensions

Transfer weight

25 /50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece automation

MARATHON RZ430

Workpiece handling

Pallet handling

Transfer weight

88 / 110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Platinum

Workpiece handling

Pallet handling

Transfer weight

25 / 50 / 88 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Iridium Hybrid

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Titanium

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Infinity

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Mill-Assist

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Tower

Workpiece handling

Pallet handling

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Promro Hybrid RD

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

LANG RoboTrex

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

How many tools do you need?

Providing the right tools is a key factor in daily production. Searching for tools, calibrating, transporting and loading the magazine tie up valuable capacity and add up to several hundred working hours over the year. Safety your economic advantage with the 152, 180 or 264-cavity standby magazine with integrated cone cleaning station.

Rationalise your production process enormously.

HEDELIUS Standard Magazin für bis zu 55 Werkzeuge für ACURA 50 CNC Bearbeitungszentren

Standard tool magazine

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 55

55 tools as standard for SK40 / BT40 / HSK A63 tool fitting

HEDELIUS MAGNUM Magazin für bis zu 25 zusätzliche Werkzeuge für ACURA CNC Bearbeitungszentren

MAGNUM tool magazine

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 80

Additional 25 tools thanks to the MAGNUM tool magazine and 55 tools as standard for SK40 / BT40 / HSK A63 tool fitting

HEDELIUS STANDBY Magazin für bis zu 70 / 115 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY Magazin 70

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 70

Tool length: 330 mm

Floor space: 1135 x 1135 mm

The STANDBY MAGAZIN is a cabinet magazine for up to 70 tools, which is installed behind the machining centre.

STANDBY Magazin 115

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 115

Tool length: 330 mm

Floor space: 1135 x 1135 mm

The STANDBY MAGAZIN is a cabinet magazine for up to 115 tools, which is installed behind the machining centre.

HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 180

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 180

Tool length: 330 mm

Floor space: 1340 x 1340 mm

The STANDBY magazine is a cabinet magazine for up to 180 tools, which is installed behind the machining centre. The integrated cone cleaning station with rotating cleaning brush, circulating oil mist blow-off jet and 3 cleaning programmes provides lasting care for the tools.

HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 264

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 264

Tool length: 330 mm

Floor space: 1660 x 1660 mm

The STANDBY cabinet magazine is designed for up to 264 additional tools. The integrated cone cleaning station provides lasting care for the tools.

Maximise process reliability.

Optimised cleaning technology and chip removal.

Maximise process reliability.

Optimised cleaning technology and chip removal.

In addition to manually activated blow-off and rinsing pistols for removing chips and blowing workpieces dry, the CNC machining centres can also be equipped with additional rinsing nozzles, which increases process reliability, particularly in automated manufacturing and aluminium production.

Chip flushing

Erweiterte Spänespülung im 5-Achs-Bearbeitungszentrum ACURA 65 für mehr Kontrolle und Präzision.

Chip flushing device

Additional chip flushing on the right and left side of the machine incl. reinforced flushing pump.

5-Achs-Bearbeitungszentrum ACURA ausgerüstet mit Spülpistole. Komplett mit Kühlmittelpumpe und Haltevorrichtung.

rinsing pistol

The machine is equipped with a rinsing pistol (3 bar, 20 litres/min), complete with coolant pump and holding device.

Dust protection cladding

5-Achs-Bearbeitungszentrum ACURA 50 ausgestattet mit Staubschutzverkleidung über dem hinteren Maschinenraum zum Schutz des Fahrständers und der X-Achse.

dust protection cladding

Fully encapsulated rear machine room for dust protection of the travelling column and the complete X-axis.

Emulsion mist extraction

5-Achs-Bearbeitungszentrum ACURA 50 ausgestattet mit Abluftfilter von LTA zur Emulsionsnebelabsaugung. Links an Vollverkleidung angebracht.

LTA 500 exhaust air filters

Electrostatic LTA exhaust filter (800 m³/h) incl. mechanical pre-filter/follow-up filter and electrostatic filter. Mounted on the left on the fully enclosed panel.

Process control with side-hung window

Prozesskontrolle am 5-Achs-Bearbeitungszentrum ACURA mit Drehfenster. Schiebetür ausgerüstet mit Drehfenster.

side-hung window

Equipping the sliding door window with a side-hung window.

Diameter: 232 mm (field of vision)

Chip press

Die Spänepresse schließt direkt am Späneförderer des HEDELIUS Bearbeitungszentrums an. Die bei der Bearbeitung anfallenden Späne werden gepresst und aus dem Reststoff wird so ein Wertstoff. So werden Platz und zusätzlich Entsorgungskosten gespart.

chip press

The chip press separates the chips from the cooling lubricants and compresses them into clean, manageable briquettes. For example, 300 litres of chips can be compressed into a few dozen briquettes. This corresponds to a volume reduction of approx. 80 %.

Even more performance with high-pressure coolant systems.

A significant increase in performance is achieved through the use of high-pressure coolant systems. In this process, the coolant is fed through the work spindle directly to the cutting edges of the tool. The separate inclined bed belt filter Coolant system incl. automatic paper feed and fill level monitoring for chipping steel, grey cast iron and aluminium. Fine chips can be filtered out in advance using a pre-filter. A duplex filter is integrated into the coolant return to protect the rotary seal. The frequency converter enables infinitely variable pressure regulation in the NC programme.

Significant increase in performance.

HEDELIUS Hochdruck-Kühlmittelanlage SKM500

Screen filter system 500 l

Contents clean tray: 500 Liter

Pump output: 25 bar, 20 l/min

Separate Coolant system with removable steel plate filter insert.

HEDELIUS Hochdruck-Kühlmittelanlage SKM900

Inclined bed filter system 900 l

Contents clean tray: 900 Liter

Pump output: 25/50/75 bar, 20 l/min

Separately standing inclined bed belt filter coolant system incl. automatic paper feed, fill level monitoring and steel sieve pre-filter above the filter felt for separating aluminium and plastic chips.

HEDELIUS Hochdruck-Kühlmittelanlage SKM1400

Inclined bed filter system 1400 l

Contents clean tray: 1400 Liter

Pump output: 25/50/75 bar, 20 l/min

Customised extensions

Numerous optional features are available to expand the performance spectrum of the Coolant systems, e.g.:

+ Immersion cooling and heating unit

+ Oil skimmer

+ Belt scraper for removing chips

+ Digital refractometer

+ Pressure booster pump 50/75 bar

Measure + check.

With touch probes and lasers.

3D measuring sensors, tool measurement sensors and tool lasers can be used for various applications, such as preparatory, regulating or monitoring measurement. During preparatory measurement, workpiece dimensions, angular errors or clamping errors are determined. While control measurement automatically reacts to material problems, system-related process deviations and unplanned events to ensure that the process is as successful as possible, monitoring measurement logs the machining result.

3D infra-red measuring sensor

3D Infrarot Messtaster eingesetzt in CNC-Bearbeitungszentrum. Durch schaltenden 3D Taststift, Sendeeinheit und Batteriebetrieb ermöglicht er eine hohe Präzision.

3D infra-red measuring sensor

Activating 3D stylus, complete with transmitter, battery and storage box.

Tool setter

Kabelloses 2D-Tastsystem zur Vermessung und Überprüfung der Werkzeuge. Montiert an der Dreh-Schwenktischeinheit.

tool setter

Wireless 2D touch probe mounted on the rotating/swivelling table unit for measuring and checking the tools.

Laser control system

Laserkontrollsystem zur Werkzeugvermessung und -brucherkennung angebaut an dem Dreh-Schwenktisch des 5-Achs-Bearbeitungszentrums ACURA 50.

laser control system

Blum LC50 260 laser tool control system mounted on the rotating/swivelling table for non-contact tool measurement and tool breakage detection, including Smart Dock connector surface, HPC cleaning nozzle and standard measurement cycles.

Drill breakage control

Bohrerbruchkontrolle durch Tastelement, das beim Werkzeugwechsel auf Bohrerbruch prüft.

drill breakage control

Button element checks for drill breakage during tool change (approx. 2 seconds).

Machining centre with rotating/swivelling table: ACURA 50 EL

Your advantages with the ACURA 50 EL

Comparison of the machines.

Gallery.

The basis of precision.

Choose your CNC control system.

Liquid-cooled motor spindles with precision cooler.

Automate your machining centre.

Automate your machining centre.

How many tools do you need?

Maximise process reliability.

Optimised cleaning technology and chip removal.

Chip flushing

Dust protection cladding

Emulsion mist extraction

Process control with side-hung window

Chip press

Even more performance with high-pressure coolant systems.

Measure + check.

With touch probes and lasers.

3D infra-red measuring sensor

Tool setter

Laser control system

Drill breakage control

This is your new CNC machining centre made in Germany.

ACURA 50 EL

CNC control

Spindle

Pallet automation

Workpiece automation

Tool magazines

Cleaning accessories

Coolant systems

Measuring and touch probe systems
