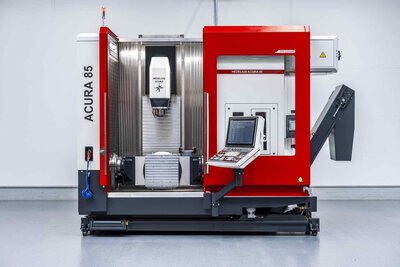

• ACURA 85 MARATHON With side loading opening and interface to MARATHON automation.
    HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 85 MARATHON
900 x 850 x 700 mm
Travel paths (X/Y/Z)
900 x 850 x 700 mm
Travel paths
Ø 400x400 / 500x500 mm
Dimensions rotating/swivelling table
Ø 400x400 / 500x500 mm
Rotating table dimensions
1000 kg
Load rotating/swivelling table max.
1000 kg
Turntable load

Machining centre with rotating/swivelling table: ACURA 85 MARATHON

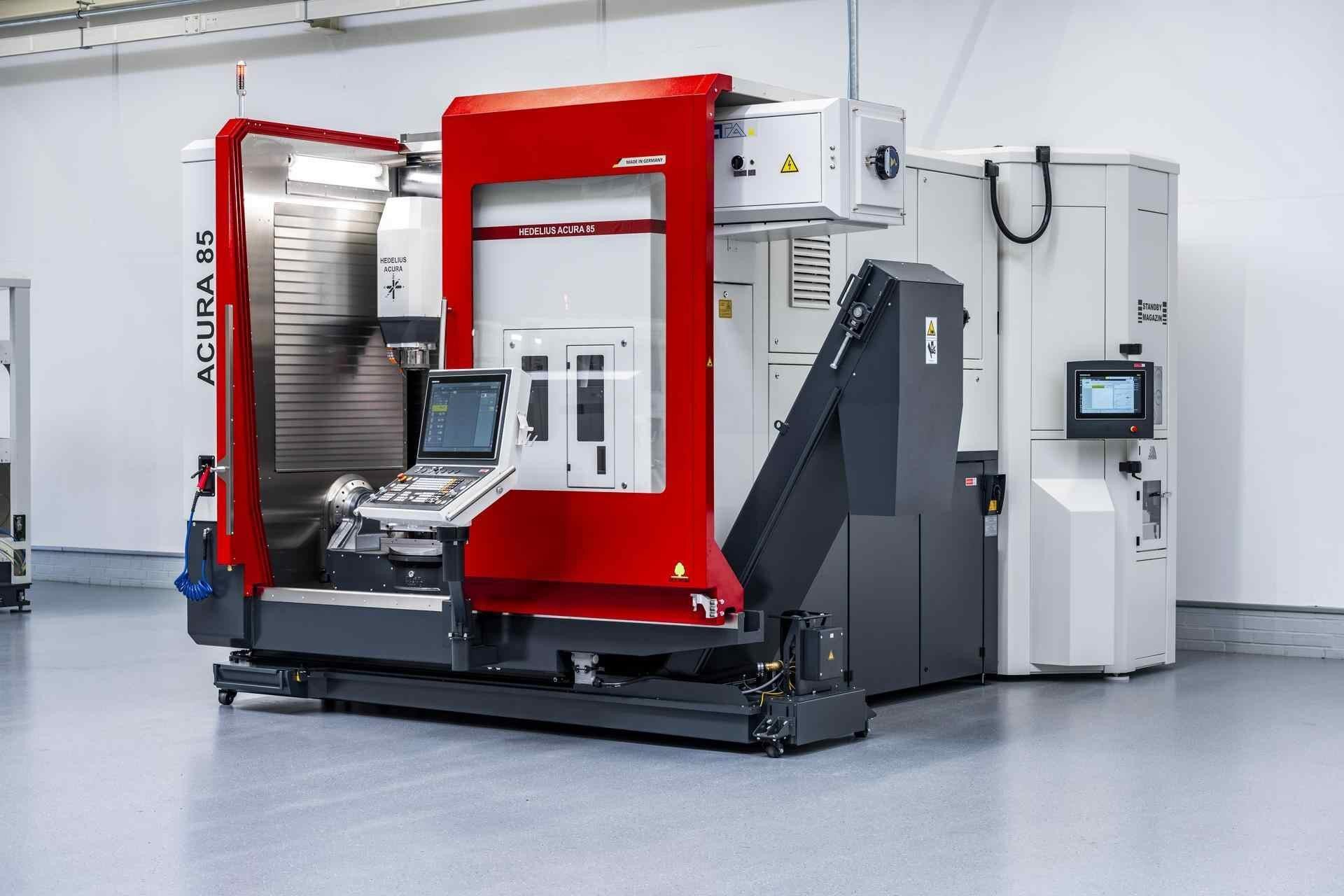

The ACURA 85 MARATHON comes with a built-in zero point clamping system for pallet automation, a side loading opening and an electrical interface for communication with the HEDELIUS MARATHON pallet magazine systems in the series. Even with automation, the ACURA 85 MARATHON remains accessible from the front, with a clear view of the work area from the loading station. The machining centre has an 80-place tool magazine as standard. An additional 264 tools are optionally available by connecting a standby magazine.

Your advantages with the ACURA 85 MARATHON

  • Automation with HEDELIUS pallet handling systems from the MARATHON series
  • Loading from the left side of the machine
  • Prepared interface
  • Side loading opening with opening height of approx. 900 mm
  • Zero point clamping elements Schunk Vero NSA Plus installed at the factory
  • Consistent Heidenhain operating concept
Arrange a consultation

Comparison of the machines.

This is where the machine comparison is created: Add further machines to compare performance parameters.

The basis of precision.

Many factors play a role in achieving a certain workpiece accuracy. On the one hand, there are the machines themselves. The type, components and software all have an influence on the machining result. However, there are also many accompanying factors to consider, from the location of the machine to measuring equipment, clamping devices and tools through to the qualifications of the employees.

Accuracy of HEDELIUS machining centres
Sophisticated type.

Designed as universal machining centres for a wide range of applications in machine and tool construction, HEDELIUS places great weight on stability and accuracy during the design phase. The result of this process was the special HEDELIUS type with the constantly cantilevered Y-axis and the resulting high rigidity and precision over the entire travel range of the Y-axis and Z-axis.

In-house production.

Critical assemblies such as travelling columns, beds and rotating/swivelling table units are manufactured and measured in-house at HEDELIUS. As a result, we not only always keep an eye on quality, but also recognise the possibilities and limits of modern chipping in day-to-day use. This process knowledge flows permanently into improving our products and advising our customers.

Guides and straightness.

HEDELIUS uses pre-aligned roller guides from German and Swiss manufacturers. At the end of assembly, the positioning precision, repeat precision, straightness and backlash of the linear axes are finally checked and documented using a laser interferometer. The positioning accuracy of the linear axes in accordance with ISO 230-2 is regularly less than 6 µm.

IT6 circular accuracy.

The Renishaw circularity test has established itself as a test method for the accuracy of machining centres. The measurement provides information on the interaction between two linear axes and the accuracy of a circular movement. The slip-stick-free roller guides in combination with direct path measuring systems and high angular accuracy enable the milling of fits in a quality of IT6, which reduces production times and the number of spindle tools required.

Measuring systems on round axes.

The accuracy of the measuring systems has a significant influence on the angularity and parallelism of surfaces and bores. HEDELIUS uses direct angle encoders in the centre of each rotational axis in the integrated rotary tables, the swivel spindle drives and the rotating/swivelling table units. As an option, laser-based angle measurement devices measure the positioning accuracy of rotational axes with a resolution of ±1" and calibrate the axes for maximum positioning accuracy.

Long-term precision.

HEDELIUS only uses direct linear measurement devices for position detection of the X-axis, Y-axis and Z-axis. This means that the position control loop encompasses the entire feed mechanism. This is referred to as "closed loop" operation. Transmission errors in the mechanics can thus be detected by the linear measurement device on the feed axis and corrected by the control electronics.

Temperature compensation.

HEDELIUS equips its machining centres with spindle coolers to dissipate the heat generated in the milling spindle. The cooling system already achieves increased thermal stability as standard. However, as not all of the heat can be dissipated by the spindle cooling, HEDELIUS optionally installs temperature sensors on the spindle, travelling column and, in some cases, on the rotary axes in order to compensate for structural displacements via the control system.

Choose your CNC control system.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

Fit for your desired control system with seminars from the CNC Academy.
HEDELIUS Steuerung für CNC-Bearbeitungszentrum mit Heidenhain TNC7
HEDELIUS Steuerung für CNC-Bearbeitungszentrum mit Heidenhain TNC7
HEDELIUS Steuerung für CNC-Bearbeitungszentrum mit SIEMENS Sinumerik ONE
HEDELIUS Steuerung für CNC-Bearbeitungszentrum mit SIEMENS Sinumerik ONE

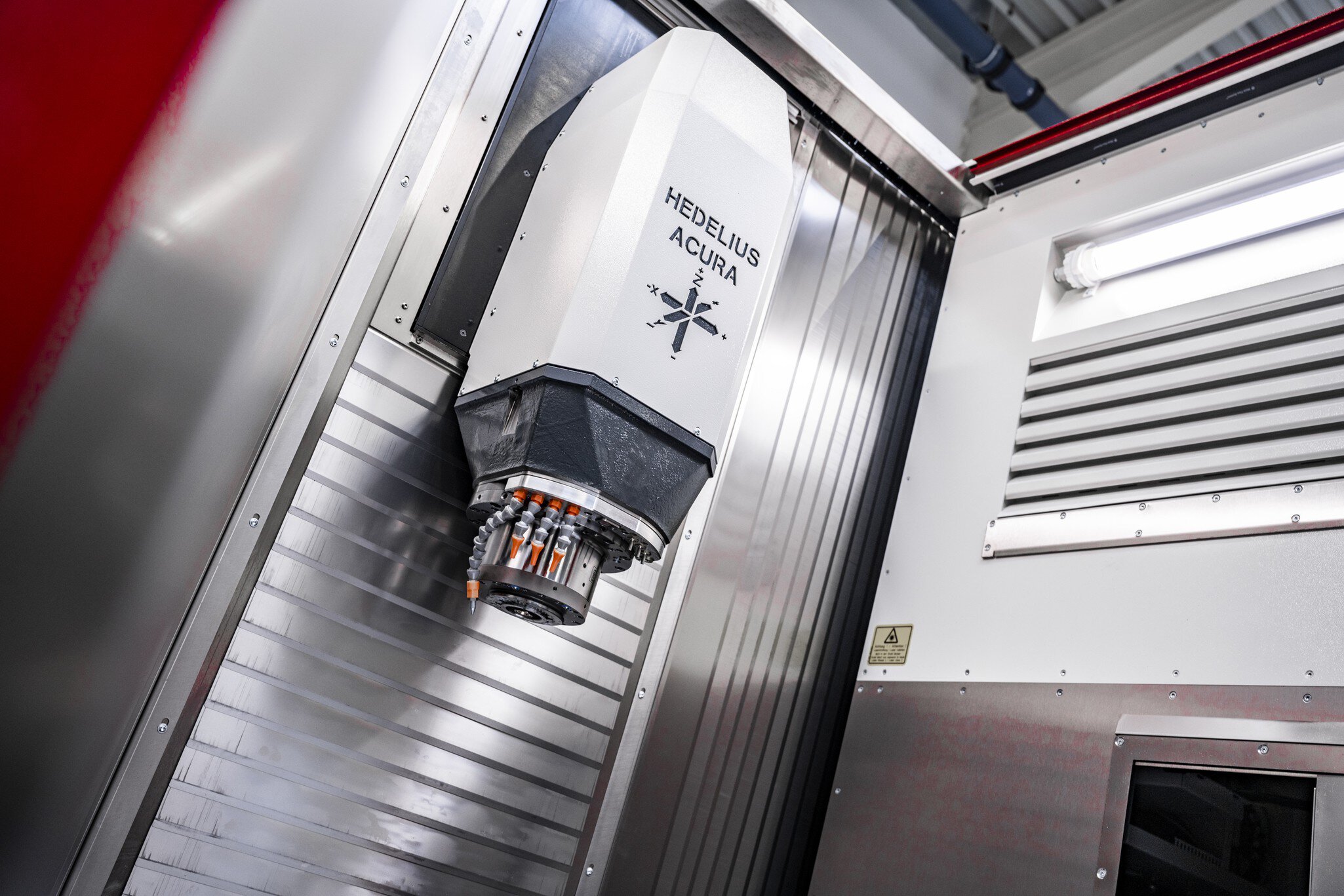

Liquid-cooled motor spindles with precision cooler.

High-output and high-torque CELOX integral motor spindles with hybrid bearing technology ensure the technological lead of HEDELIUS machining centres. In conjunction with the HSK interface, the hydromechanical tool clamping system guarantees maximum system rigidity and concentricity.

Find out all about integral motor spindles.

Automate your machining centre.

More productivity, higher delivery reliability, less stress on employees: there are many good reasons for automating production. HEDELIUS machining centres can be optimally automated. The automation is often attached to the side of the machine. Loading from the side means that the work area remains fully available for set-up and control work, but also, for example, for single part production during the day shift. Even crane loading of the machine is possible without restrictions. Another advantage (depending on the selected automation) is the visibility of the work area and thus optimised process control during set-up on the automation. At the same time, this solution requires little depth and can be easily integrated into an existing production line.

Advantages of automation.
Pallet automation
Workpiece automation

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

34

400x400x38 mm

88 /110 kg

6

400x400x38 / 400x500x48 mm

270 /370 kg

22

400x400x38 mm

270 kg

18

500x500x48 mm

470 kg

16

-

24 /80 kg

-

-

25 kg

-

-

24 /80 kg

-

-

180 /225 kg

50

-

30 kg

24

-

60 kg

24

400x400x38 / 320x320x38 / 200x200x38 mm

120 kg

-

400x400x38 / 320x320x38 / 200x200x38 mm

150 kg

25

400x400x38 / 320x320x38 / 200x200x38 mm

80 kg

40

-

80 /120 kg

-

-

kg

-

-

100 kg

-

-

25 /50 kg

Workpiece handling

Pallet handling

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

88 / 110 kg

24 / 50 / 80 kg

25 kg

180 / 225 kg

180 / 225 kg

25 kg

100 kg

25 / 50 kg

25 / 50 kg

Automate your machining centre.

More productivity, higher delivery reliability, less stress on employees: there are many good reasons for automating production. HEDELIUS machining centres can be optimally automated. The automation is often attached to the side of the machine. Loading from the side means that the work area remains fully available for set-up and control work, but also, for example, for single part production during the day shift. Even crane loading of the machine is possible without restrictions. Another advantage (depending on the selected automation) is the visibility of the work area and thus optimised process control during set-up on the automation. At the same time, this solution requires little depth and can be easily integrated into an existing production line.

Advantages of automation.
Pallet automation

Number of pallets

34

Pallet dimensions

400x400x38 mm

Transfer weight

88 /110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

6

Pallet dimensions

400x400x38 / 400x500x48 mm

Transfer weight

270 /370 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

22

Pallet dimensions

400x400x38 mm

Transfer weight

270 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

18

Pallet dimensions

500x500x48 mm

Transfer weight

470 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

16

Pallet dimensions

-

Transfer weight

24 /80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

24 /80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

180 /225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

50

Pallet dimensions

-

Transfer weight

30 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

24

Pallet dimensions

-

Transfer weight

60 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

24

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

150 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

25

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

40

Pallet dimensions

-

Transfer weight

80 /120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Number of pallets

-

Pallet dimensions

-

Transfer weight

25 /50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece automation

Workpiece handling

Pallet handling

Transfer weight

88 / 110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

24 / 50 / 80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

How many tools do you need?

Providing the right tools is a key factor in daily production. Searching for tools, calibrating, transporting and loading the magazine tie up valuable capacity and add up to several hundred working hours over the year. Safety your economic advantage with the 152, 180 or 264-cavity standby magazine with integrated cone cleaning station.

Rationalise your production process enormously.
Tool fitting: SK 40 / BT 40 / HSK A63
Capacity: 80
Tool length: 390 mm
Tool fitting: SK 40 / BT 40 / HSK A63
Capacity: 180
Tool fitting: SK 40 / BT 40 / HSK A63
Capacity: 264
Maximise process reliability.
Optimised cleaning technology and chip removal.

Maximise process reliability.

Optimised cleaning technology and chip removal.

In addition to manually activated blow-off and rinsing pistols for removing chips and blowing workpieces dry, the CNC machining centres can also be equipped with additional rinsing nozzles, which increases process reliability, particularly in automated manufacturing and aluminium production.

Chip flushing

Dust protection cladding

Emulsion mist extraction

Process control with side-hung window

Chip press

Even more performance with high-pressure coolant systems.

A significant increase in performance is achieved through the use of high-pressure coolant systems. In this process, the coolant is fed through the work spindle directly to the cutting edges of the tool. The separate inclined bed belt filter Coolant system incl. automatic paper feed and fill level monitoring for chipping steel, grey cast iron and aluminium. Fine chips can be filtered out in advance using a pre-filter. A duplex filter is integrated into the coolant return to protect the rotary seal. The frequency converter enables infinitely variable pressure regulation in the NC programme.

Significant increase in performance.
Contents clean tray: 500 Liter
Filtering level: 1000 µm
Filter performance: 180 l/min
Pump output: 25 bar, 20 l/min
Contents clean tray: 900 Liter
Filtering level: 190 µm
Filter performance: 180 l/min
Pump output: 25/50/75 bar, 20 l/min
Contents clean tray: 1400 Liter
Filtering level: 190 µm
Filter performance: 180 l/min
Pump output: 25/50/75 bar, 20 l/min
Measure + check.
Measure + check.

Measure + check.

With touch probes and lasers.

3D measuring sensors, tool measurement sensors and tool lasers can be used for various applications, such as preparatory, regulating or monitoring measurement. During preparatory measurement, workpiece dimensions, angular errors or clamping errors are determined. While control measurement automatically reacts to material problems, system-related process deviations and unplanned events to ensure that the process is as successful as possible, monitoring measurement logs the machining result.

3D infra-red measuring sensor

Tool setter

Laser control system

Drill breakage control

This is your new CNC machining centre made in Germany.

ACURA 85 MARATHON

Travel paths (X/Y/Z)
Travel paths (X/Y/Z)
Travel paths
900 x 850 x 700 mm
Dimensions rotating/swivelling table
Dimensions rotating/swivelling table
Rotating table dimensions
Ø 400x400 / 500x500 mm
Load rotating/swivelling table max.
Load rotating/swivelling table max.
Turntable load
1000 kg

CNC control

Spindle

Palettenautomation

Workpiece automation

Tool magazines

Cleaning accessories

Coolant systems

Measuring and touch probe systems

HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 85 MARATHON

You are interested in a new HEDELIUS machining centre. We will be happy to make you an offer, e.g. for a CNC machining centre, an automation solution, etc. from HEDELIUS Maschinenfabrik GmbH. We would be happy to demonstrate the output of our CNC machining centres in a practical demonstration or via video live stream.
