Order for linear concatenation.

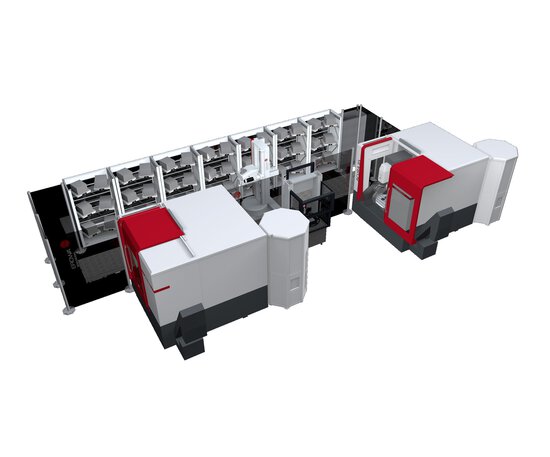

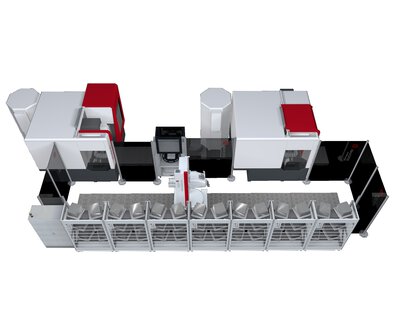

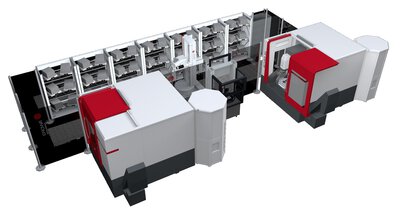

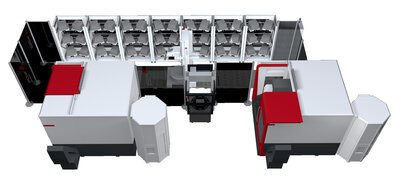

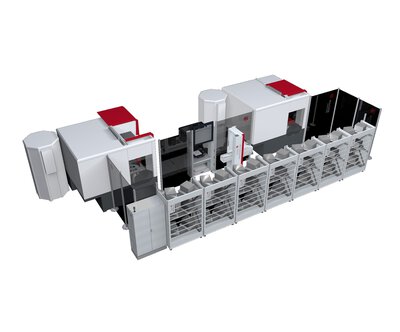

Two ACURA 85 EL + EROWA ERD 250.

HEDELIUS Maschinenfabrik has once again received an order to supply two automated 5-axis machining centres from the ACURA series. The automation is realised by an EROWA ERD 250 linear robot. The entire system is 20 metres long and has 73 pallet stations and 520 tool stations.

More information on the ACURA 85 EL.

ACURA 85 EL

Travel paths (X/Y/Z): 900 x 850 x 700 mm

Travel paths: 900 x 850 x 700 mm

Dimensions rotating/swivelling table: Ø 850x750 mm

Rotating table dimensions: Ø 850x750 mm

Load rotating/swivelling table max.: 1000 kg

Turntable load: 1000 kg
